WIM
Model : WIM
Overview:

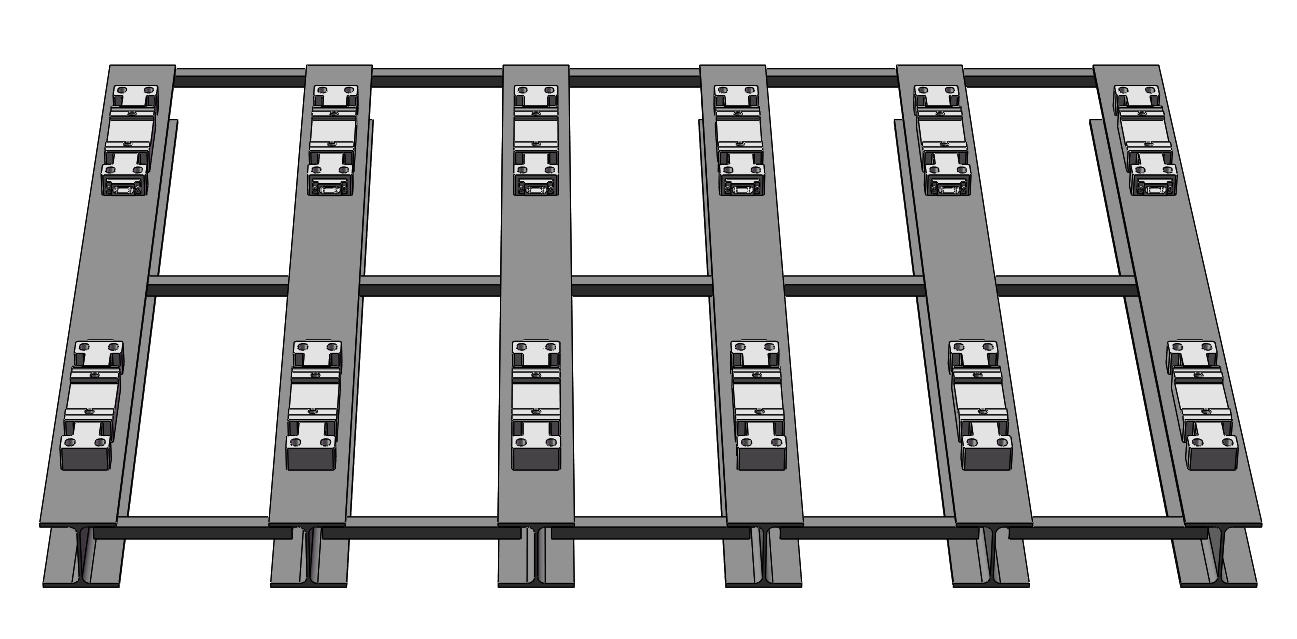

The WIM--Weigh In Motion System can provide the wagon weight in real time, which is capable of train weighing up to 80km/h. It is ideal solution for mine, industrial plants, cement plant, power stations, steel mills etc.
Due to continuous rail structure , no rail cutting, welding required, when the vehicles pass without any impact, greatly improve the weighing speed and accuracy. And when don’t need to measure, the speed is not limited.
Functions and Features:
• No rail cutting, welding required
• Safe and reliable operation
• High stiffness and stability
• Load cell based system
• Concrete foundation or civil works necessary or not dependent on site conditions.
• Available for weight data storage, printout and access by internet.
Specifications:
| Capacity | 100t each wagon |
| Division | 20kg |
| Accuracy | ±0.5% |
| Protection Class | IP67 |
| Temperature | -30℃~+70℃ |
| Supply voltage | 12V DC |
| 230V/50Hz AC | |
| other supply voltages on request | |
| Interfaces | USB, LAN, WLAN |
